How to Reduce Bore Size of Your Saw Blade?
An experienced woodworker understands the relationship between a saw and a perfectly fitted blade. A blade must be snugly fitted to the saw’s arbor to work properly. If it is loose around the arbor, it may damage or shatter the blade. Circular saws are versatile and simple to use, but they require proper setup and a bit of practice. Understanding how blades and bores work will improve both performance and blade life.
Summary
This article explains why a snug arbor-to-bore fit is critical on circular saws and how to use reducer rings/bushings to adapt blades with larger bores to smaller arbors. It reviews common arbor sizes (including diamond-shaped bores on worm-drive blades) and the risks of an improper fit. Step-by-step instructions show how to select and install reducing rings so the blade seats securely for safe, accurate cutting.
Understanding Blade Components
Bore (Blade Center Hole)
- The bore is the hole at the center of the blade that mounts onto the saw’s arbor.
- If a blade’s bore is larger than the saw’s arbor, you can use reducer rings (also called adapter rings, saw blade spacers, or bore bushes) to achieve a snug fit.
Arbor (Bore Shaft / Spindle / Mandrel)
- The arbor is the motor shaft designed to hold and drive the blade.
- When powered, the arbor spins the blade. Proper fit ensures balance, accuracy, and safety.
Common Blade and Arbor Sizes
- As blade diameter increases, arbor size generally increases.
- Common circular saw blade diameters include 18.415 cm, 25.4 cm, and 30.48 cm.
- Many handheld saws use 18.415 cm blades.
- A typical circular saw arbor size is 1.5875 cm, though small woodcutting blades may have 0.635 cm or 1.27 cm bores.
- Larger, stationary saw blades often use a 2.54 cm bore.
- Some blades under 30.48 cm diameter may still come with a 2.54 cm or a diamond-shaped bore.
- Saws with 2.54 cm arbors are generally more powerful and require more power.
Worm-Drive Saws and Diamond-Shaped Bores
- Worm-drive saw blades often use a diamond-shaped bore instead of a round one.
- These saws are popular with professional carpenters for quickly cutting dimensional lumber.
- With the engine vertically oriented to the saw blade plate, worm-drive systems provide higher torque even at lower motor speeds.
- Always use a blade with the bore style your saw is designed to accept.

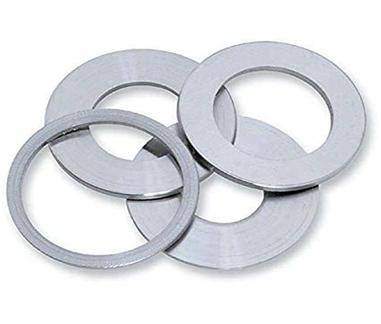

Arbor Reducer Bushings (Reducer/Adapter Rings)
When replacing a circular saw blade, the arbor hole must match the saw’s arbor. If the blade’s bore is larger than the arbor, use a metallic reducer ring (bushing washer, saw blade spacer, or bore bush).
- The bushing’s outside diameter must match the blade’s bore.
- The bushing’s inside diameter must match the saw’s arbor.
- Example: A standard 30.48 cm blade may have a 2.54 cm bore, while many mitre saw arbors are 1.5875 cm. A reducer ring bridges this gap.
- Never mount a blade if the arbor fit is not tight. A loose fit can cause imbalance, wobble, and dangerous conditions.
- Bushing washers are inexpensive, easy to install, and let multiple blades share the same spindle when arbor sizes differ.
Fixing Reducing Rings on Your Saw Blade
- Disconnect the saw from the power supply to avoid accidental startup or electric shock.
- Uninstall the old blade as directed by your saw’s instruction manual.
- Determine the correct arbor size of the machine from the manufacturer’s specifications.
- Select the correct reducing ring and test-fit it in the blade’s bore to confirm a proper match to your saw’s arbor.
- Place the blade on a flat surface so that the teeth do not touch the surface.
- Position the matching reducing ring in the bore.
- Using a small hammer, gently tap around the ring’s outer edge until it seats fully in the blade.
- Ensure the ring is seated uniformly and not bulging on any side. Mount the blade on the saw’s arbor and clamp it properly.
Where to Buy
Woodford Tooling supplies high-quality blades, saws, and accessories such as reducer rings at special offers.
Q&A
Why does the blade’s bore have to fit the saw’s arbor snugly?
Short answer: A tight, accurate fit keeps the blade centered and balanced. If the bore is loose on the arbor, the blade can wobble, run out of true, and may be damaged or even shatter. A snug arbor-to-bore fit is critical for safe, accurate cutting.
When should I use a reducer ring (arbor bushing), and how do I size it correctly?
Short answer: Use a reducer ring whenever your blade’s bore is larger than your saw’s arbor. Choose a ring whose outside diameter exactly matches the blade’s bore and whose inside diameter matches the saw’s arbor. For example, many 30.48 cm blades have a 2.54 cm bore, while typical miter saw arbors are 1.5875 cm—this gap is bridged by a reducer ring. These parts are also called adapter rings, saw blade spacers, bushing washers, or bore bushes. Never mount a blade if the fit isn’t tight.
What blade and arbor sizes are most common?
Short answer: Common blade diameters are 18.415 cm, 25.4 cm, and 30.48 cm. Many circular saws use a 1.5875 cm arbor. Small woodcutting blades may have 0.635 cm or 1.27 cm bores. Larger, stationary saw blades often have a 2.54 cm bore, and some blades under 30.48 cm may still come with a 2.54 cm or a diamond-shaped bore.
How do I install a reducing ring safely?
Short answer:
- Disconnect the saw from power and remove the old blade per the manual.
- Confirm the saw’s arbor size from the manufacturer’s specs.
- Test-fit the correctly sized ring in the blade’s bore.
- Lay the blade flat with its teeth not touching the surface.
- Place the ring in the bore and gently tap around its outer edge with a small hammer until it seats fully.
- Check that it’s uniform and not bulging, then mount and clamp the blade on the arbor.
What’s different about worm-drive saw blades with diamond-shaped bores?
Short answer: Worm-drive blades often use a diamond-shaped bore rather than a round one. They’re designed for worm-drive saws favored by carpenters for quickly cutting dimensional lumber, where the drive orientation provides higher torque even at lower motor speeds. Use blades with the bore style your saw is designed to accept.
